3-d axonometric
3-d axonometric
A view down to the Hotel Entry
Hotel Entry
Circulation corridor into the building
Retail street front
Retail entry
Retail interior
Retail interior
Lower retail interior

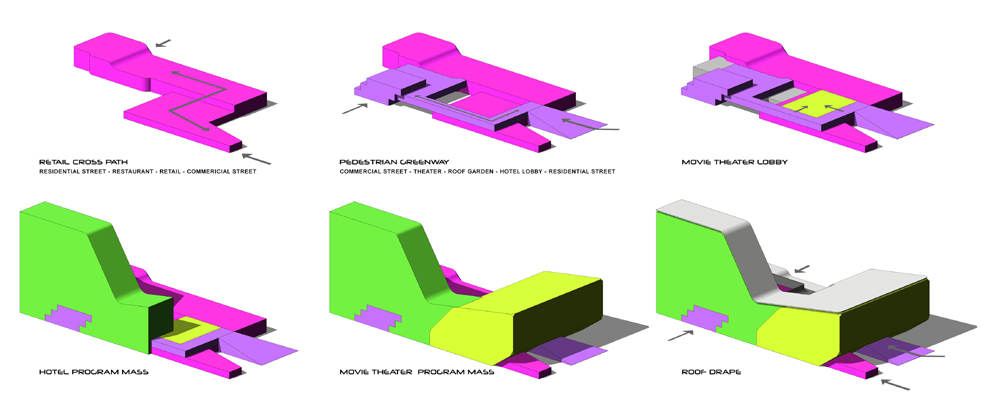

3-dimensional circulation and program organization

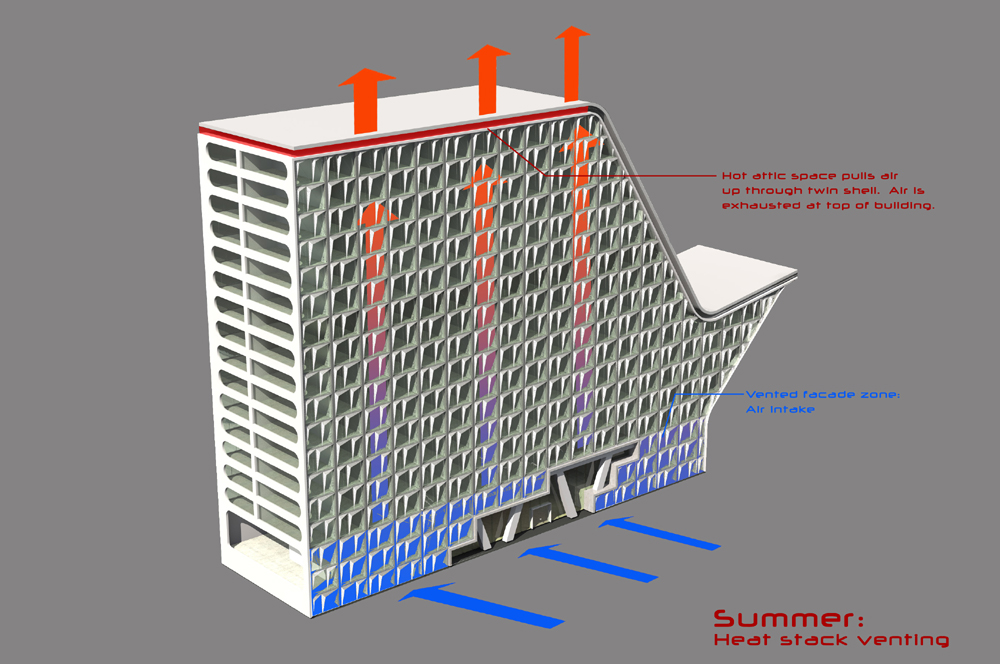

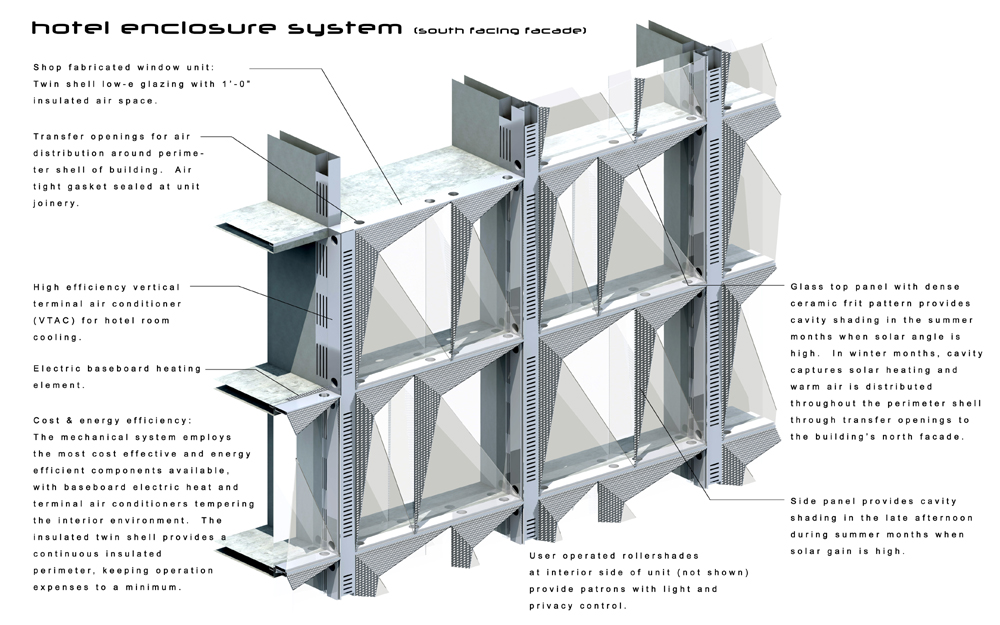

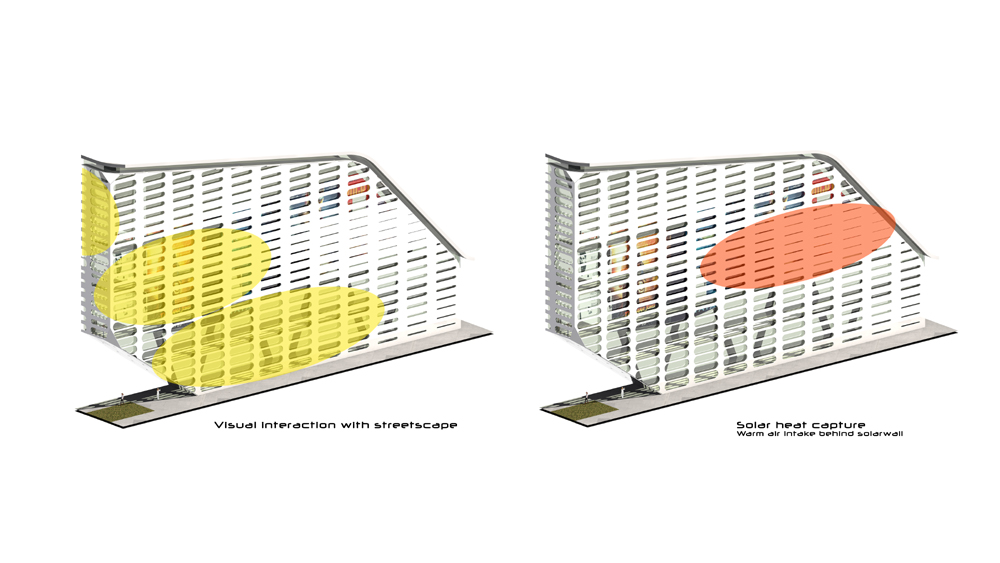

Facade passive design concept

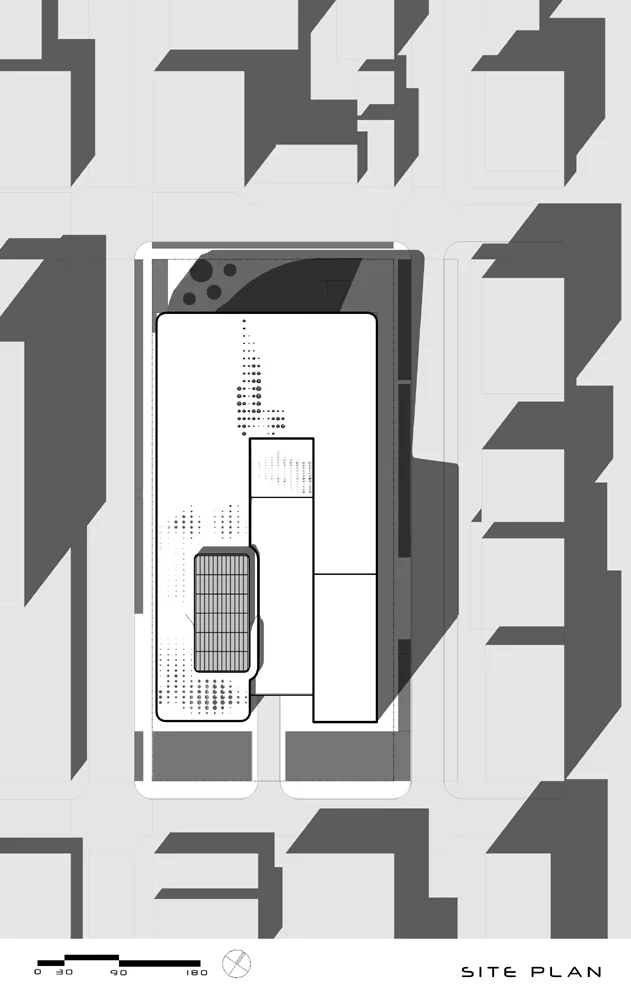

Site Plan

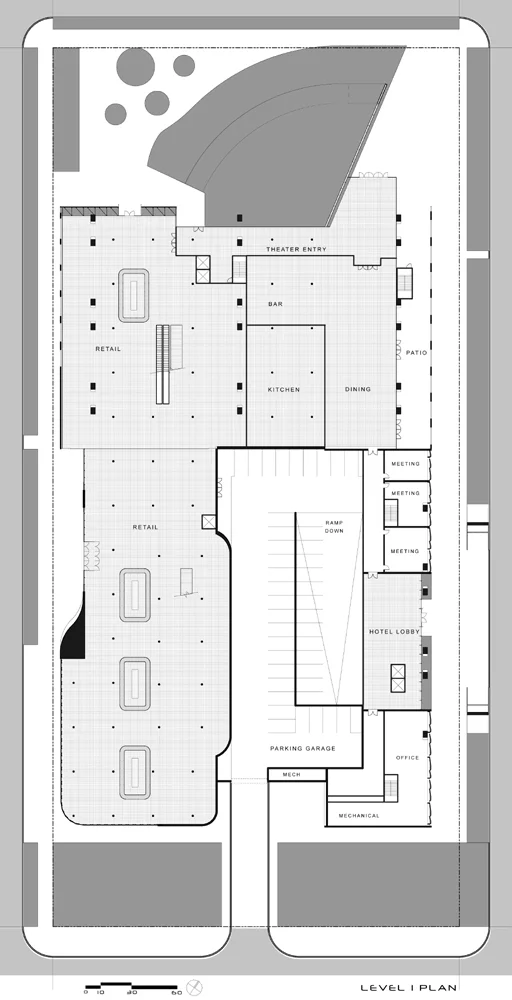

Ground Level Plan

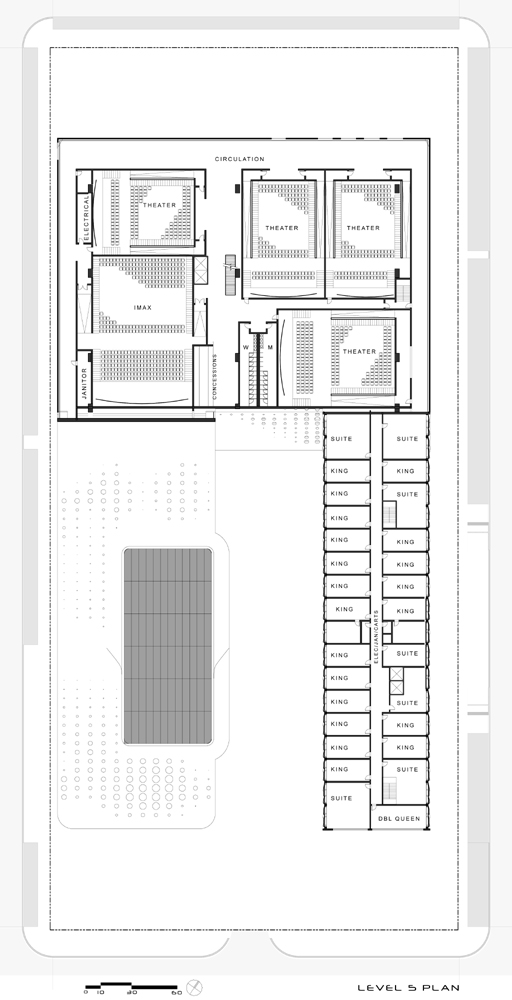

Upper Level Plan

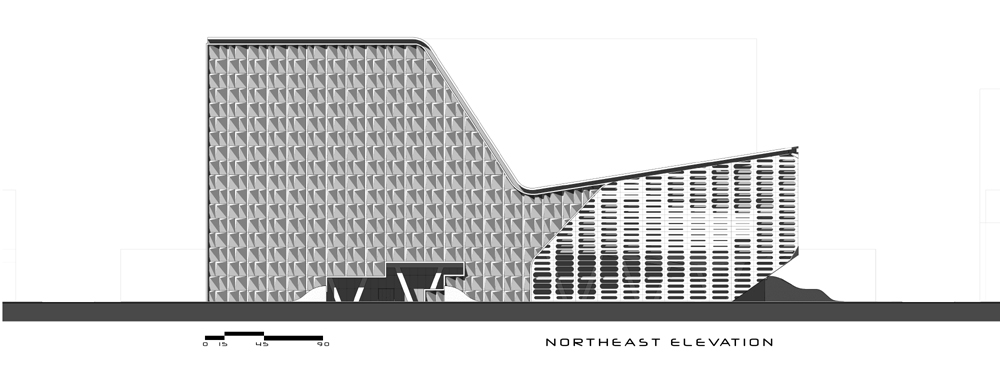

Northeast elevation

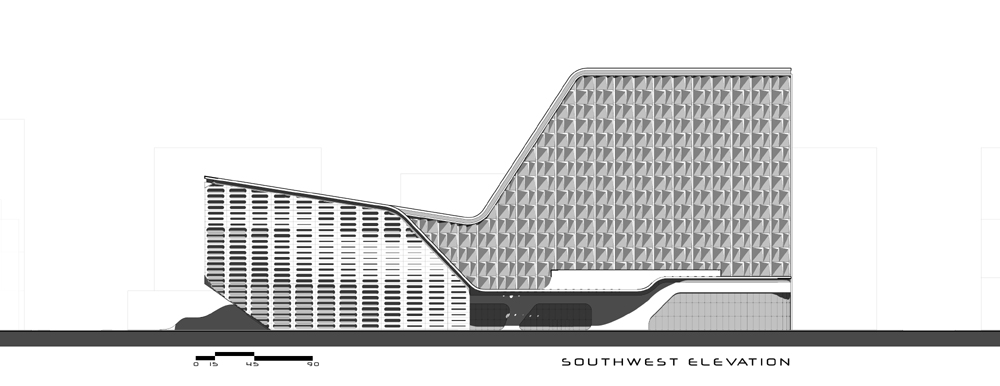

Southwest Elevation

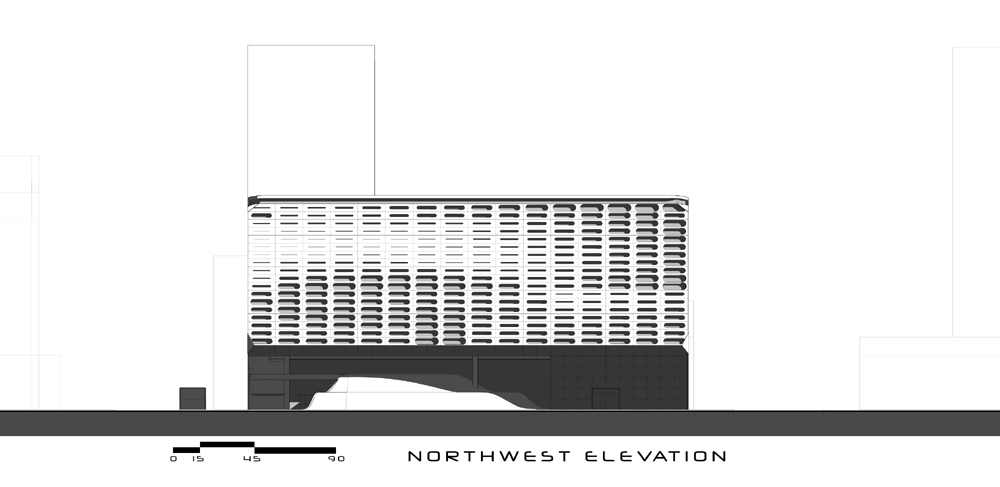

Northwest Elevation
Southeast Elevation

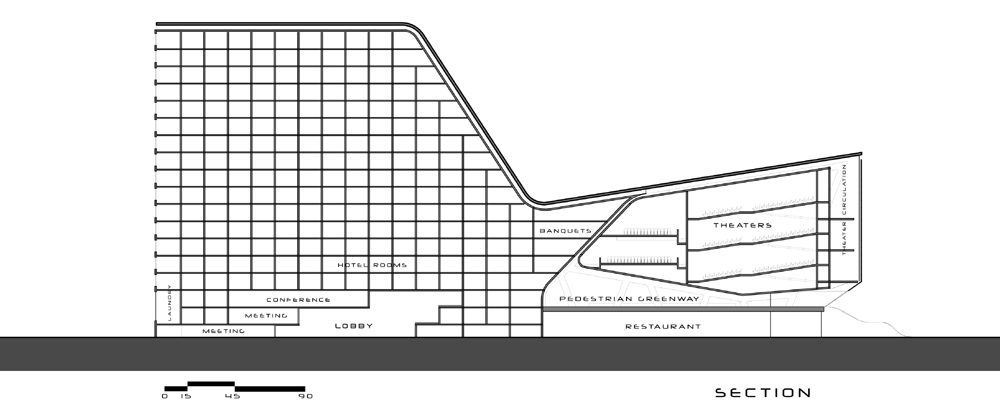

Section
